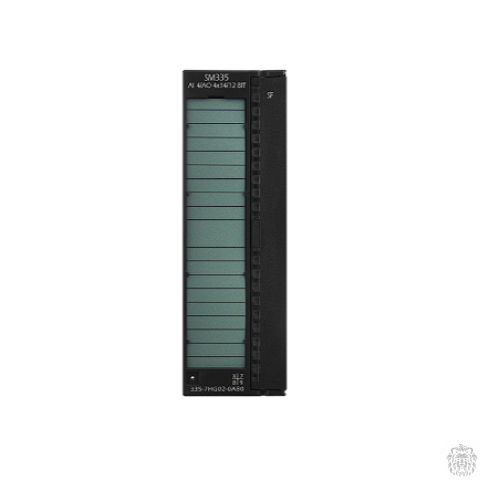

SM335 4 high-speed inputs/4 high-speed outputs UN 335-7HG02-0AB0 Аналоговый модуль ввода/вывода 300-ой серии

Product  Description

4 high-speed inputs/4 high-speed outputs;

Encoder power:10V/25mA

1 counter input(24V/500Hz)

Model Feature Data

Number of analog Inputs

4

Number of analog outputs

4

Cable Length (Shielded)

200m

Detection range of breaking wire(0~10V)

30m

Voltage and current

Load voltage+rated value

24V DC

·Reverse polarity protection

Yes

Electrical isolation

Yes

Current  loss

From backplane bus (Max)

75mA

From L+

150mA

Power loss (Max)

3.6W

Diagnostic interrupt

·Limit-value interrupt

None

·Circulation interrupt

Yes,Configurable

·Diagnostic interrupt

Yes,Configurable

Diagnostic function

·Group fault error display

Yes,Red LED

·Can be read information ofDiagnostic

Yes
