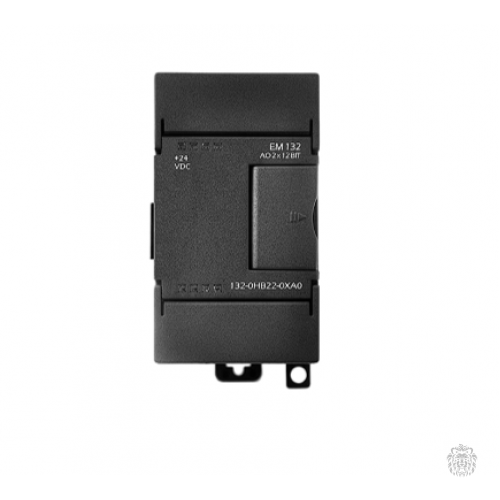

EM132 2 outputs ×12bits UN 132-0HB22-0XA8 Аналоговый модуль вывода 120-ой серии

Product  Description

2AO; 12 bits resolution voltage output;

11 bits resolution current output

Input Feature

From bus current consumption

20mA

From L+ current consumption

70mA

Power loss

2W

Number of analog Input

2

Input voltage range

-10~+10V

Input current range

0~20mA

Load inpedance

·for voltage outputs

Min:5KΩ

·for current outputs

Max:0.5KΩ

Resolution

12 bits voltage output;

11 bits current output

Data word format

·Displayable:voltage output

-32，000~+32，000

·Displayable:current output

0~32，000

Basic error

±0.5% of full range

Dimensions(W x H x D)(mm)

46×80×62

Order Number

UN 132-OHB22-0XA0
