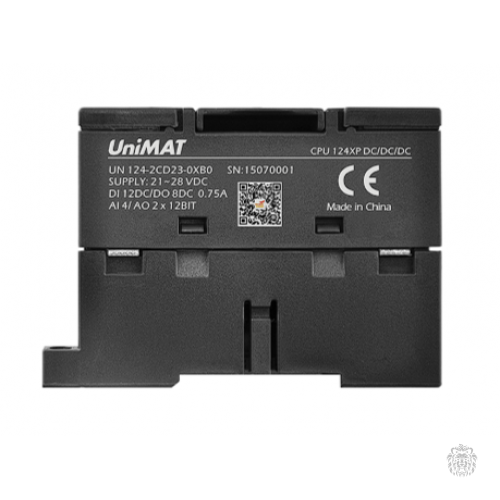

CPU124XP-2Q DC/DC/DC UN 124-2CD23-0XB8 Высокая рентабельность, NPN-выход

Model

CPU124XP-2Q DC/DC/DC

Physical characteristic

Dimensions(W x H x D)(mm)

120.5×80×62

Power consume

7W

Memory

Program memory size

Data memory

10K

Back up (by Flash, no need battery)

keep over 10 years

I/O

Local digital inputs

12 inputs

Local digital outputs

8 outputs

Local Analog inputs

4 inputs

Local Analog outputs

2 outputs

Digital I/O image size

128(64 inputs/64 outputs)

Analog I/O image size

32(16 inputs/16 outputs)

expansion modules allowed (Max)

4 modules

High-speed counters

6 counters total

Single phase

6 at 30KHz

Two phase

4 at 20KHz

Pulse outputs

2 at 20KHz（DC outputs only）

General

Timer

Total number：256（1ms:4；10ms:16；100ms:236）

Counters

256

Internal memory bits stored on power down

256

Time interrupts

2 with1ms resolution

Edge interrupts

4 up and/or 4 down

Analog adjustment

2 with 8 bit resolution

Boolean execution speed

0.08µs per instruction

Real Time Clock

Built-in

Ports

2 RS-485 ports, within1standard PPI port

PPI Baud Rates

9.6，19.2 and 187.5 Kbaud

Freeport Baud Rates

1.2kbaud to 115.2Kbaud

Max. cable length per segment

With isolated repeater：1000 m up to 187.5kbaud, 1200 m up to 38.4kbaud

Without isolated repeater: 50 m

Max. number of stations

32 per segment, 126 per network

Max. number of masters

32

Peer to peer（PPI Master Mode）

Yes
